Home Champion 35-Ton Horizontal / Vertical Log Splitter (93520)

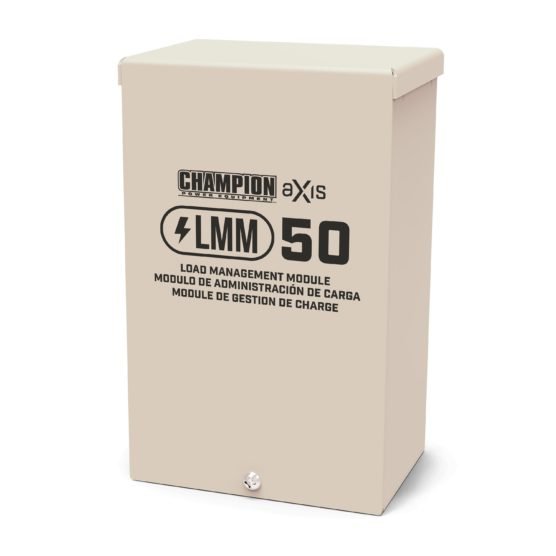

Champion 50-Amp Load Management Module $135.95
Back to products
Champion 3400-Watt Portable Inverter (CA) $711.00

Champion 35-Ton Horizontal / Vertical Log Splitter (93520)

$1,579.50

Compare
Add to wishlist
Share:
  • Description
Description

Description

Product Description

Limited Time Free Shipping & No Sales Tax!

The Champion 35 Ton Gas Powered Log splitter is the largest wood splitter in Champions line up. This log splitter can split either in the horizontal or vertical position with just pulling a pin and rotating the beam and locking the pin back in place.

The 338 CC Champion engine (approx 11HP) has a low oil shut off and a cast iron sleeve for durability.  This wood splitter comes equipped with a full tow package with a 2″ coupler and road approved (DOT) tires. This unit is only partially assembled and will require assembly.

These deliveries will be made with a full size freight truck and there will be little or no assistance provided with unloading the items.  If you feel that you will need a lift gate to help unload your item please select the lift gate option.

Detailed Specifications

Engine:
Champion 338 cc (11HP Approx)

Splitting Wedge:
7″ Sharpenable

Operating Position:
Horizontal / Vertical

Force / Tonnage:
35 Ton (70,000lbs)

Cylinder:
4.7″ x 23″

Cycle Time:
18-20 Seconds (Approx)

Log Opening:
24 Inches

Wheels & Tires:
High-Speed, 4.80 x 8

Road Towable:
Yes – 2″ Coupler & Safety Chains

Hydraulic Filter:
Yes – Included

Operating Size:
86″ x 41″ x 47

Hydraulic System:
9 Gallons

Safety Control Valve:
Detent – Auto Return

2 Stage Pump:
Yes – 13 Gallons Per Minute

Log Cradles:
Yes – Included

Log Dislodger:
Yes – Included

Crate Dimensions:
55″L x 27″W x 22″H

Consumer Warranty:
Yes – 2 Year Limited

Shipping Weight:
617 LBS

Electric Start:
No

Made in USA?:
No
